PREMIUM UV SEALER SPRAY GUN

WS-PRIMER UV

Q&A

What is the difference between a WS-Primer UV and any other spray gun?

The WS-Primer is Anest Iwata’s first offering of a dedicated Primer spray gun. The UV version of this spray gun series is specialized on the efficient application of UV-curing materials. It was designed around the Anest Iwata’s patented Split Nozzle Technology which allows for highly fine-tuned atomisation for specific application types. But the WS-Primer UV is not only about its atomization – it provides the user with all they need for the best in class UV-material application. It offers specific features like a dedicated black 200ml cup, a black air cap cover as well as a striking purple color scheme making its daily handling a easy and convenient.

What is the particular advantage of the UV workflow?

Integrating UV primers into the workflow offers a variety of benefits. Quite likely the notable one is the fast curing of UV materials. However, also reliable and stable surfaces, less shrinkage and improved throughput help you and your bodyshop maintain a competitive edge. By reducing cycle times and associated costs, UV primer workflows cater to both to spray painters as well as business owners looking to maximize efficiency and profit.

How do I know if the WS-Primer UV is the right choice for me?

Whenever you work with any sort of UV-cured primer materials the WS-Primer is the right pick. Anest Iwata’s engineers made sure the available nozzle and air cap setups are suitable and perfectly optimized for all common UV-materials used in car refinish. Aside of that it offers a specific feature-set which enhances your usage experience and allows you for working quick and efficiently.

Which of the available setups should I choose?

Anest Iwata works closely with all of the major paint brands on the market and the WS-Primer UV spray guns are approved for their specific application. Therefore, the best starting point is the Technical Data Sheet of the specific paint you are using.

Guides & Tutorials

QUICK START

9 Steps

Unboxing & Set Up

1

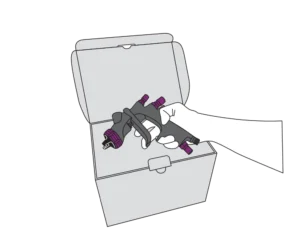

Unboxing

Unpack the spray gun and make sure that the product has not been damaged during transportation and that all the contents are included the packaging.

2

CLEAN & CONNECT

*Clean the fluid passages of the gun before the first use to remove any residue of oil. (*Refer to Cleaning Guide)

  1. Connect Pressure Gauge and/or air nipple to the air inlet port of the gun.
  2. Firmly assemble the gravity cup to the spray gun fluid nipple.
  3. Firmly connect the air hose to the air inlet pressure of the gun.



3

WEAR PROTECTIVE GEARS

During all fases of setup and operation procedures, always wear proper body and respiratory protection such as:

Anest Iwata safety glasses, mask and gloves.

  • 7 Steps

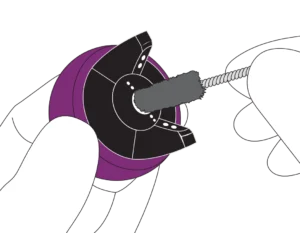

    Cleaning Guide

    LEARN MORE
  • 14 Steps

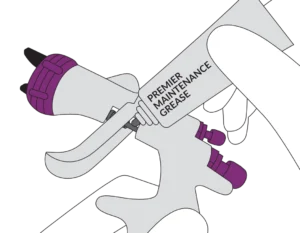

    Maintenance

    LEARN MORE
  • 9 Steps

    Unboxing & Set Up

    LEARN MORE

Troubleshooting

Spare parts

Choose
GRAVITY CUP 2 Items
NOZZLE & AIR CAP 5 Items
TRIGGER 3 Items
1 Item
1 Item
NEEDLE PACKING 2 Items
AIR VALVE 7 Items

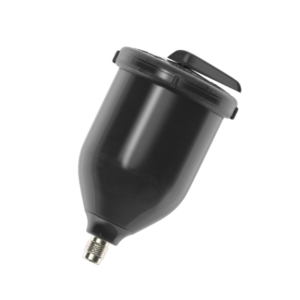

PCG-2P-2-S1 Gravity Cup Black 200ml
140025A0

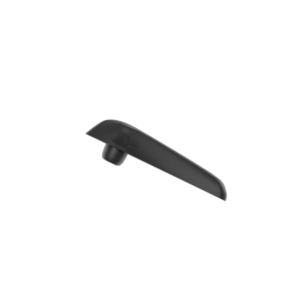

Non Drip Set (5pcs)
W2KIT07

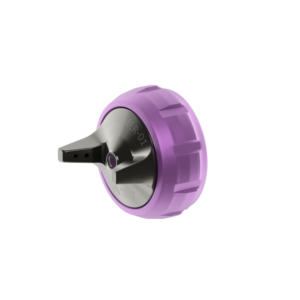

Air Cap Set WS-Primer-UV
930733A0
NOZZLE NEEDLE SET
3 Items

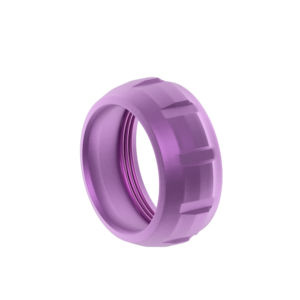

Air Cap Ring WS-Primer (Purple)
930729A0
Air Cap Packing Set (2pcs.)
93017700

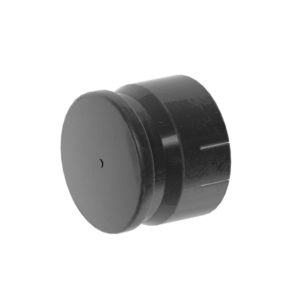

Air Cap Cover
930754A0
Nozzle Needle Set 1.0 WS-Primer
930770A0
Nozzle Needle Set 1.1 WS-Primer
930771A0
Nozzle Needle Set 1.2 WS-Primer
930772A0
Trigger
930510A0
Trigger Screw
960081A0
Trigger Stud
93001870

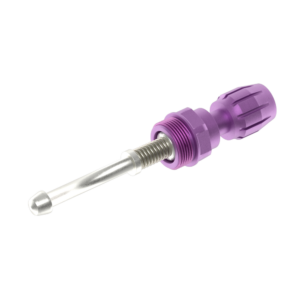

Pattern Adjustment Set (Purple)
930727A0

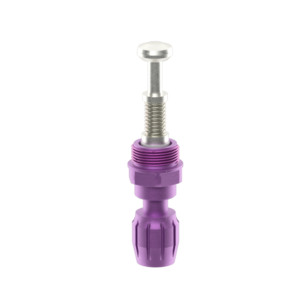

Air Adjustment Set (Purple)
930726A0
Self Adjusting Needle Packing
93001410
Needle Packing Assembly
93810620
Air Valve Shaft
93001790
Air Valve Seat Set V2
930789A0
Air Valve
93001690
Air Valve Spring
93001700

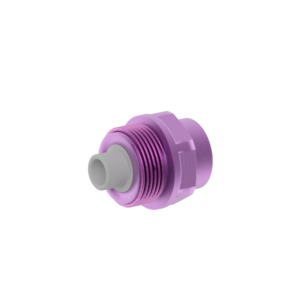

Fluid Adjustment Guide Set (Purple)
930728A0
Fluid Needle Spring
93002820

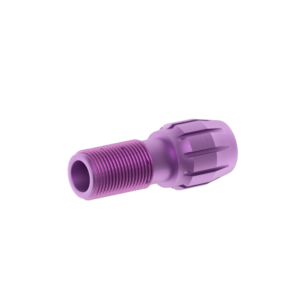

Fluid Adjustment Knob (Purple)
930725A0

Documents

Document name
Format
Size
Actions
Instruction manual
PDF
3.8 MB
Document name
Format
Size
Actions
Maintenance Guide
PDF
0.5 MB
Setup Guide
PDF
1.1 MB
Cleaning Guide
PDF
1 MB
